1. Human-centered In-building Embodied Delivery:

We have developed a brand-new virtual environment system from scratch, constructing a multi-level connected building space modeled after a polar research station. This environment also includes autonomous human characters and robots with grasping and mobility capabilities, as well as a large number of interactive items. Based on this environment, we have built a delivery dataset containing 13k language instructions to guide robots in providing services. We simulate human behavior through human characters and sample their various needs in daily life. Finally, we proposed a method centered around a large multimodal model to serve as the baseline system for this dataset. Compared to past embodied data work, our work focuses on a virtual environment centered around human-robot interaction for commercial scenarios. We believe that this will bring new perspectives and exploration angles to the embodied community.

Purpose:  Deliver the requested item to the vicinity of the designated character.
Delivery Items:  Items in the environment that can be grabbed and moved.
Customers:  Ten virtual human characters with different daily activities inside the building. They will move within the building for their own purposes.
Spatial Scope:  The reachable areas within different rooms of a three-story building.
Time Setting:  Real-world time, but simulation can be accelerated
Scenario Map:  2D projected obstacle map of scenario, and pre-sampled panoramic photos at various locations on the map.
Robot Positioning:  We adopt relative localization rules for robot positioning.
Robot Actions:  Movement, Joint control, and manipulation.
Robot Skills:  Local navigation by coordinate, 6-DOF visual grasping, and pose adjustment.
Sensors:  Two RGB-D cameras (head and arm), tactile sensors.
Success Criteria:  Place the target object within a 3 meter range of the target person.
Constraints:  Completion within 8 minutes without any dangerous collisions and unavailability of environmental metadata.
Evaluation:  based on the total time taken and success rate of the object delivery, grasping the target object, and identifying the target character.

We move the online evaluation to the Eval AI .

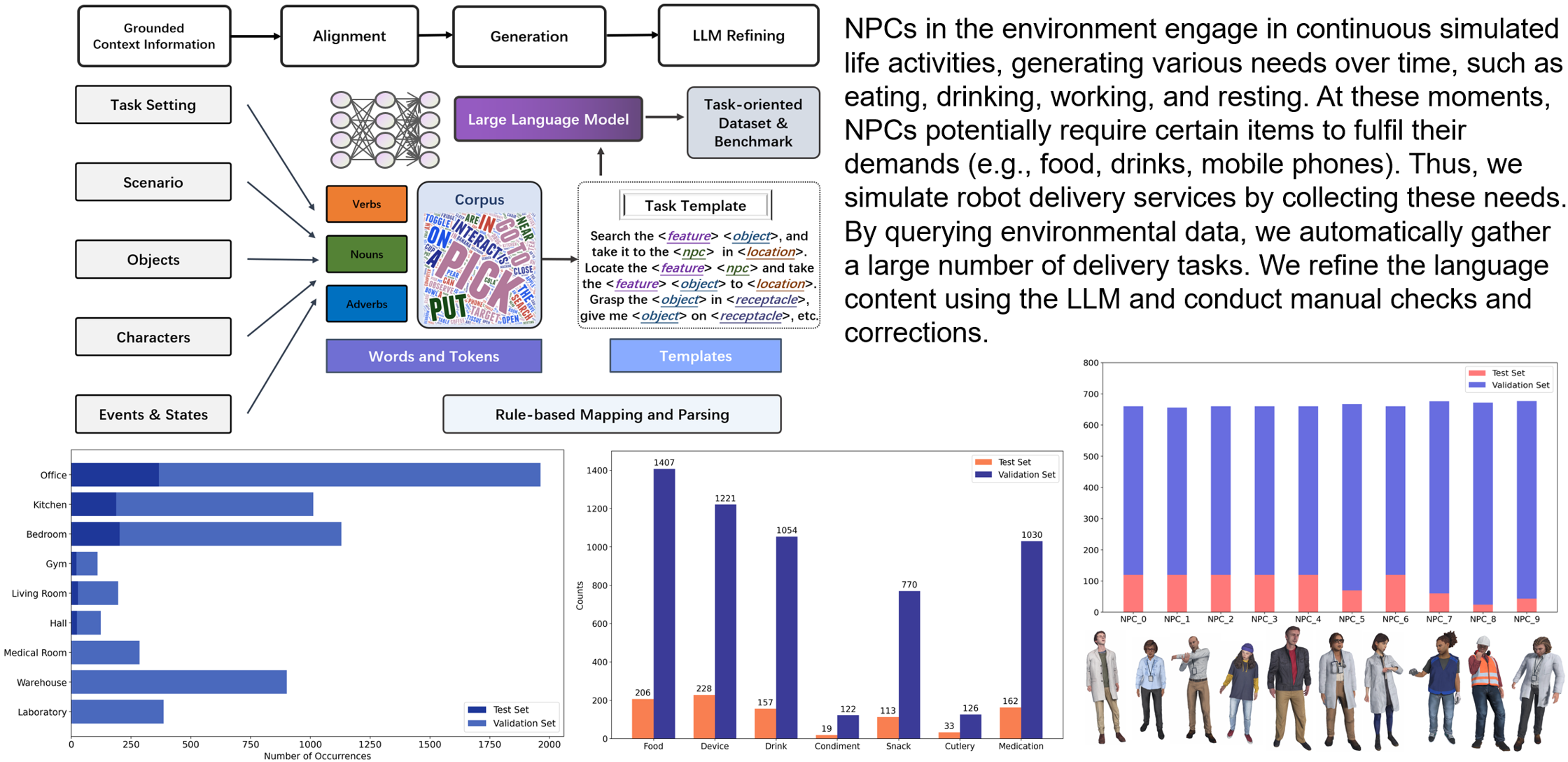

A data generation instance. We generate human activities, target objects, robot positions, task instructions, and a complete process of robot execution based on the settings combined with large models.

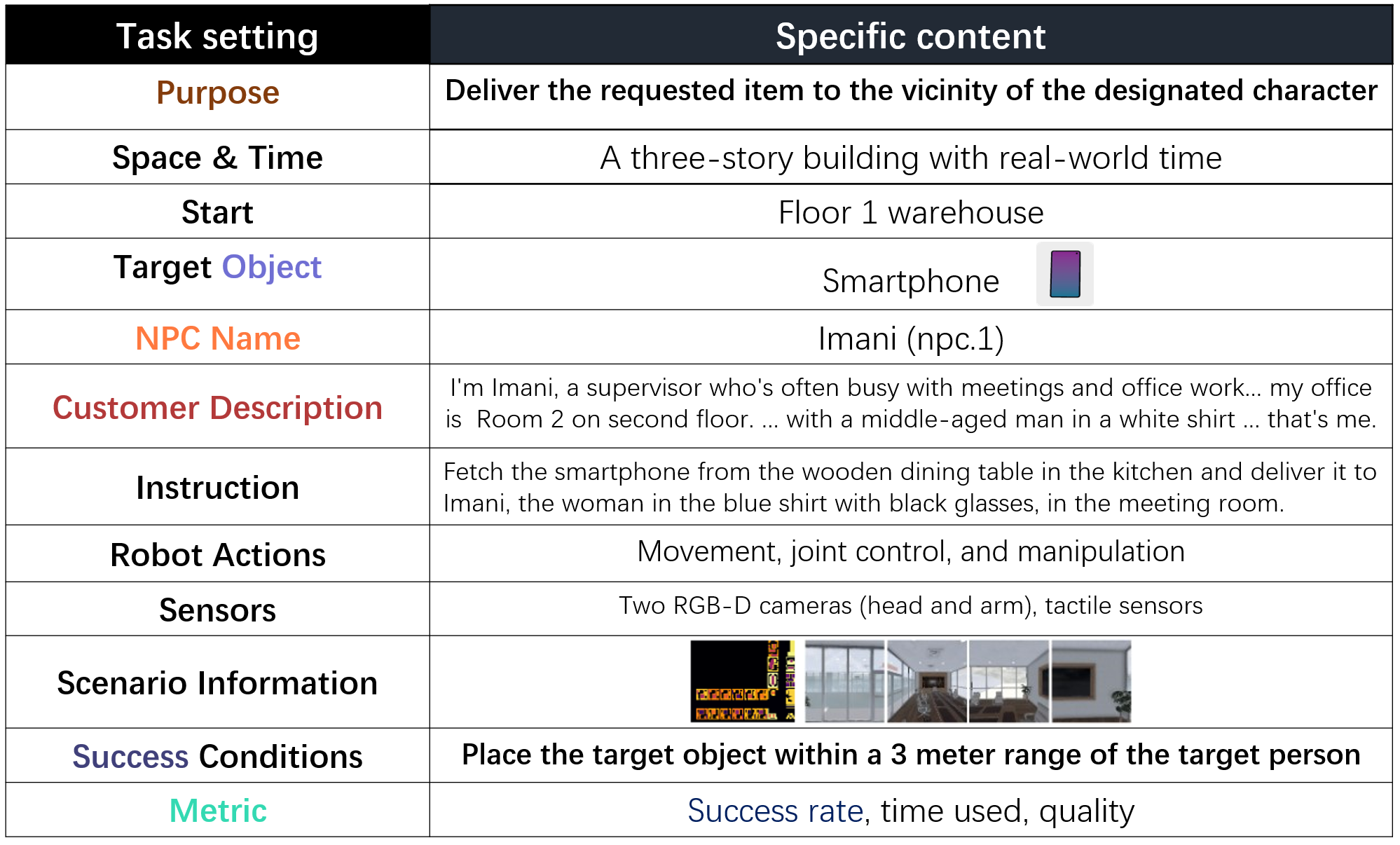

The available information in task.

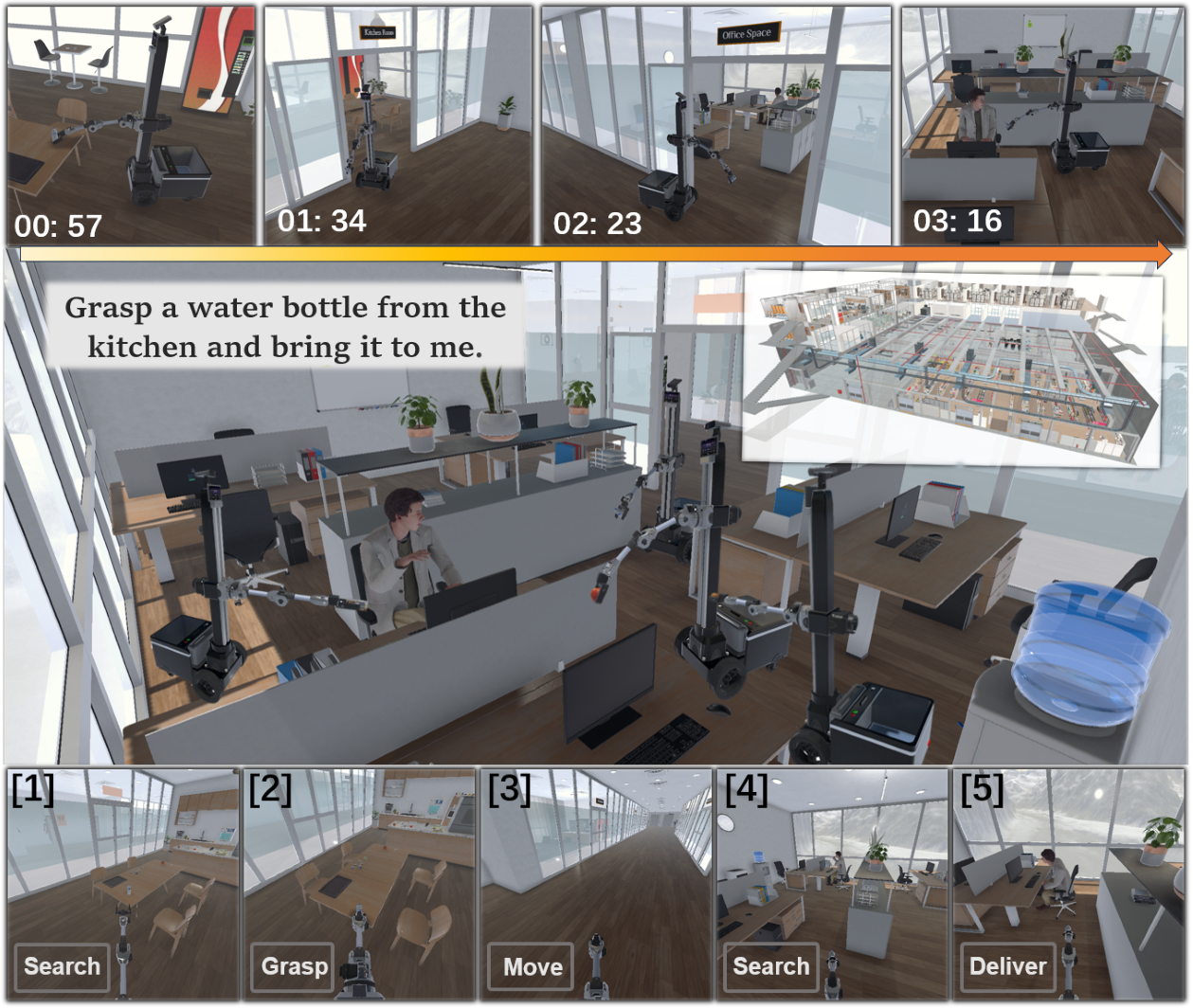

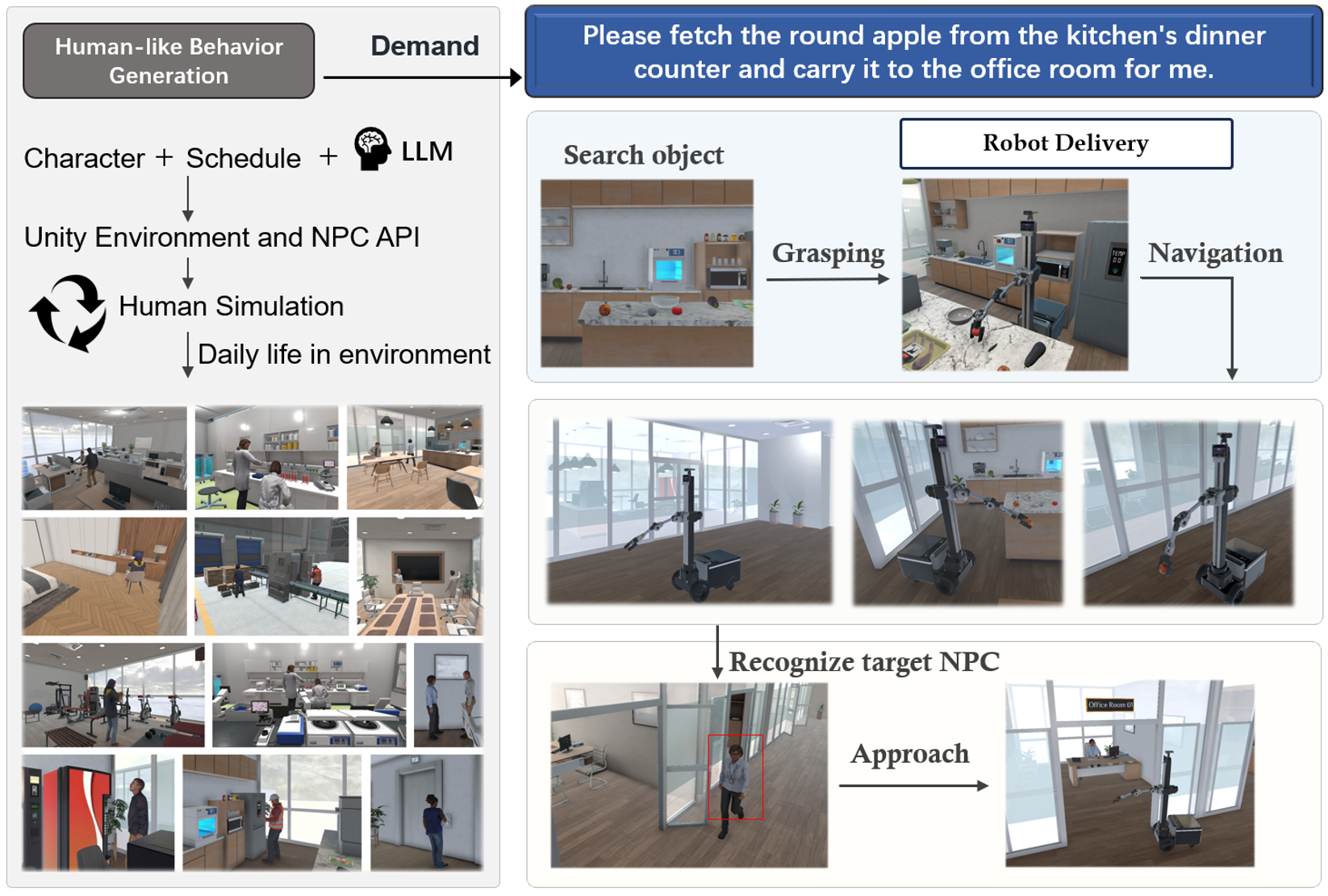

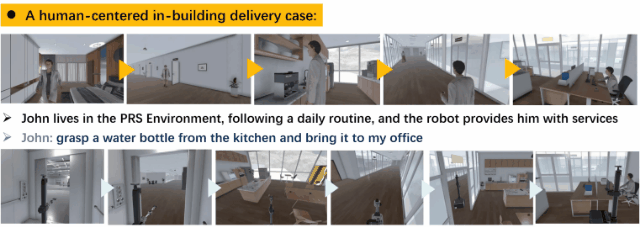

Human-centered in-building embodied delivery task setting.

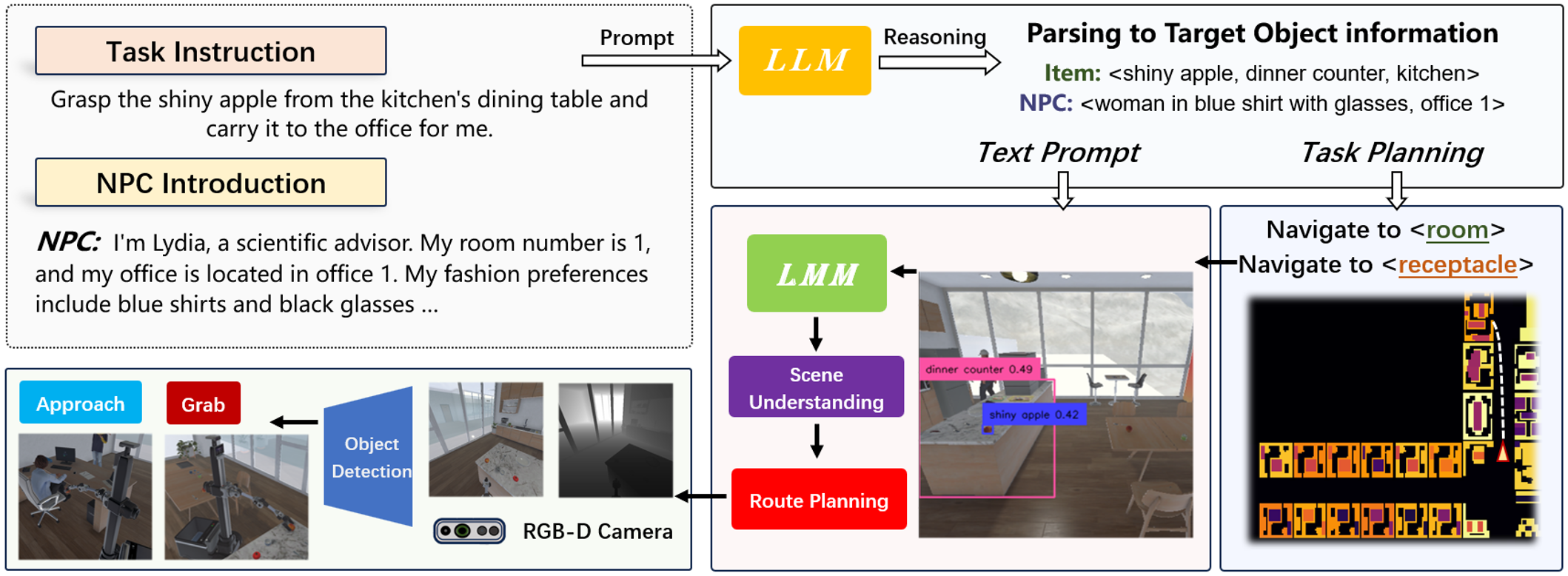

Modular method for the robot delivery task with LLM and LMM.

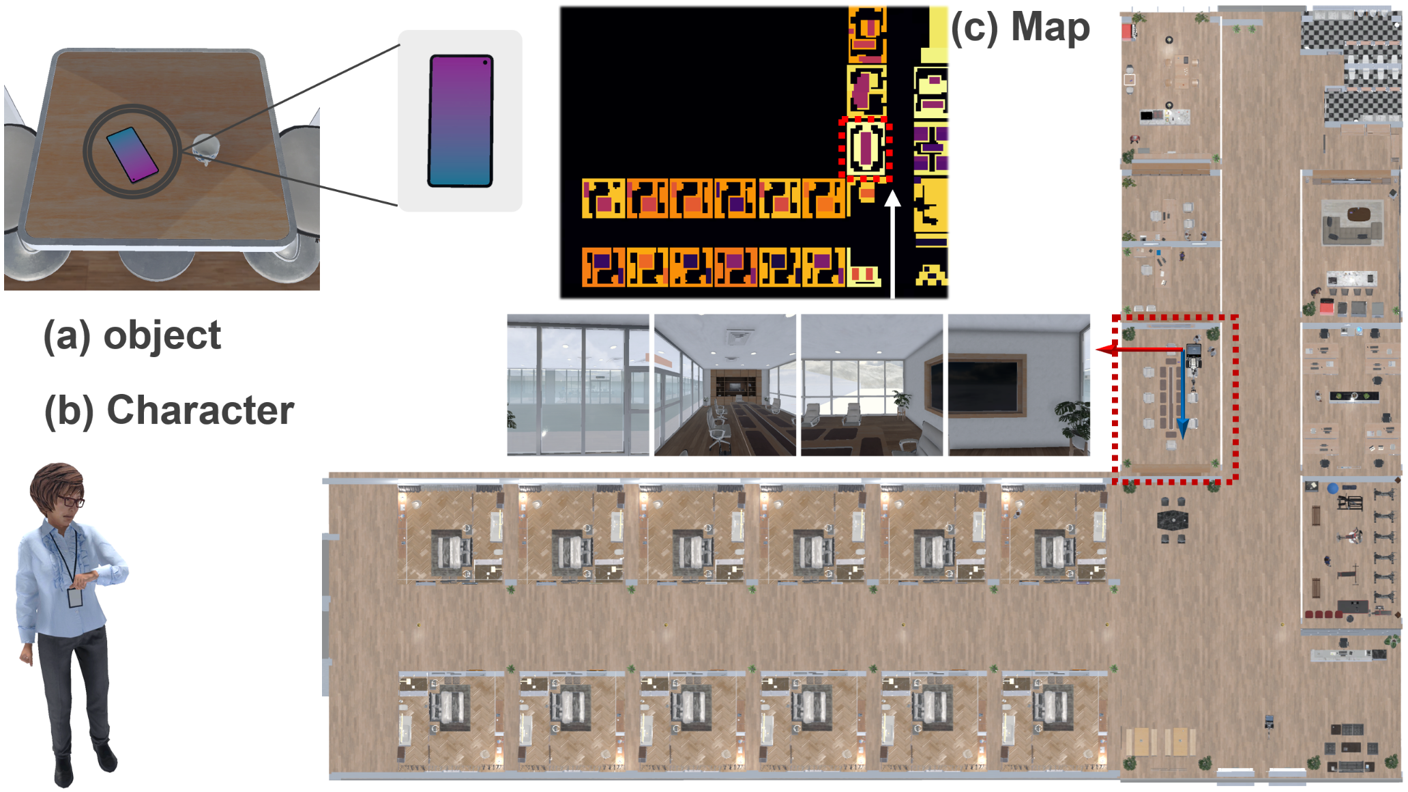

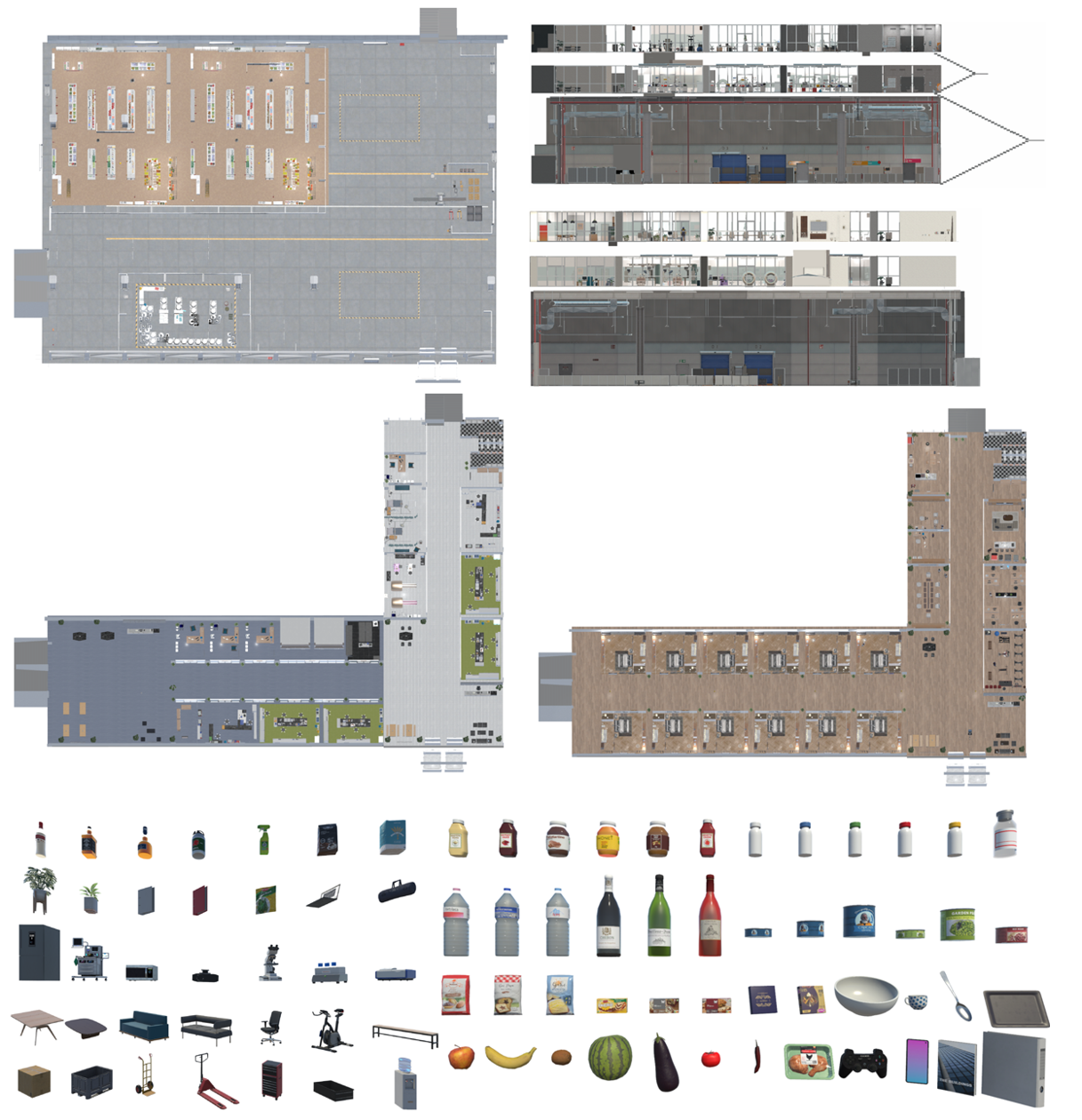

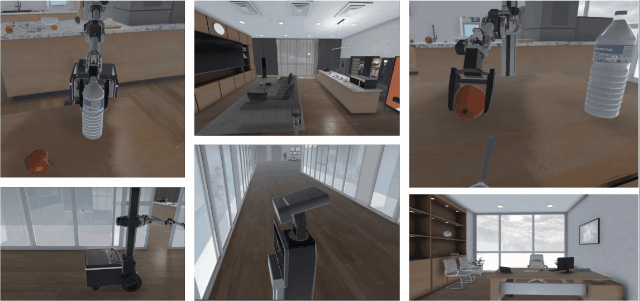

Scenarios and objects in PRS environment.

PRS Simulator Demo
